Overview
Differential invariants [1,4,5,13,21] provide induction principles for differential equations. They can be understood as the differential analogue of induction techniques but for differential equations rather than for discrete systems [11]. Discrete induction is used to prove a property of a loop by proving that the invariant is true initially and then that it is preserved every time the loop body executes once. Similarly, a differential invariant is proved to hold always after a differential equation by proving that it holds initially and by proving that it is preserved in the direction of the dynamics of the differential equation. Differential invariants can prove properties of differential equations without having to solve the equations, which makes them computationally attractive.
Differential Invariants
Differential invariants [1,4] define an induction principle for differential equations [11,21]. They make it possible to prove properties of differential equations without having to solve the equations. Differential invariants are formulas that remain true along the dynamics of the hybrid system and its differential equations. The central property of differential invariants for verification purposes is that they replace infeasible or impossible reachability analysis with feasible symbolic computation. Differential invariants are computationally attractive concepts, because their inductive conditions are formed by differentials or Lie derivatives, giving decidable firstorder real arithmetic.
Differential invariants have been studied in a number of results [1,13,14,11,18,20,7,21]. Together with the other invariant principles for differential equations explained below, they make differential equation invariants decidable [23].
Differential invariants (and their companions below) have been implemented in the KeYmaera theorem prover, its successor KeYmaera X, in Isabelle/HOL, and the Coq proof assistant.
Differential Variants
The dual verification technique of differential variants can be used to prove liveness and progress properties of differential equations without having to solve them. Differential variants [1] are implemented in KeYmaera.
Differential Cuts

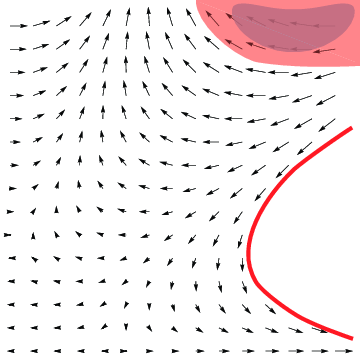

Differential cuts [1,4,13,21] allow the use of lemmas that have been proved for differential equations. Differential cuts work as follows. They first prove that a differential equation never leaves region C and then restrict the dynamics of the system to C. Restricting the dynamics of a system to a subregion C usually changes the behavior of the system, except that the first proof already showed a lemma that the system cannot leave region C anyhow, so that the restriction of the dynamics to C turns out to be a pseudorestriction that does not change the actual dynamics even if it changes the description.
The no differential cut elimination theorem [13] has been proved, which implies that differential cuts cannot be eliminated but fundamentally add to the deductive power. Sometimes you crucially need to exploit differential cuts to be able to verify.
Differential Ghosts

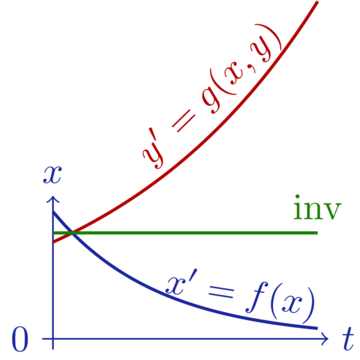

Ghost variables (or auxiliary variables) are extra variables that remember intermediate states, which can be useful for proving properties of conventional discrete programs. Differential ghosts [13,21] are the differential counterpart. What differential ghosts do is that they introduce extra variables into extra dimensions of the system, which can further evolve according to extra differential equations that are made up solely for the purposes of the proof.
Differential Equation Axiomatization
By crucially exploiting differential ghosts, it has been shown that invariance properties of differential equations are decidable [23] just by conducting a corresponding proof/disproof from these axiomatic reasoning principles for differential equations.We prove the completeness of an axiomatization for differential equation invariants. First, differential equation axioms in differential dynamic logic are shown to be complete for all algebraic invariants. The proof exploits differential ghosts, which introduce additional variables that can be chosen to evolve freely along new differential equations. Cleverly chosen differential ghosts are the prooftheoretical counterpart of dark matter. They create new hypothetical state, whose relationship to the original state variables satisfies invariants that did not exist before. The reflection of these new invariants in the original system enables its analysis.
Extending the axiomatization with existence and uniqueness axioms makes it complete for all local progress properties, and further extension with a real induction axiom makes it complete for all real arithmetic invariants. This yields a parsimonious axiomatization, which serves as the logical foundation for reasoning about invariants of differential equations. Moreover, the results are purely axiomatic, and so the axiomatization is suitable for sound implementation in foundational theorem provers.
[23]
Differential Radical Invariants
A generalization of differential invariants to higherorder derivatives, called differential radical invariants, gives a decision procedure for algebraic invariants of algebraic differential equations. Differential radical invariants decide equational invariants p=0 for polynomials p. Differential radical invariants [16] are implemented in KeYmaera.
